设备名称 Equipment name

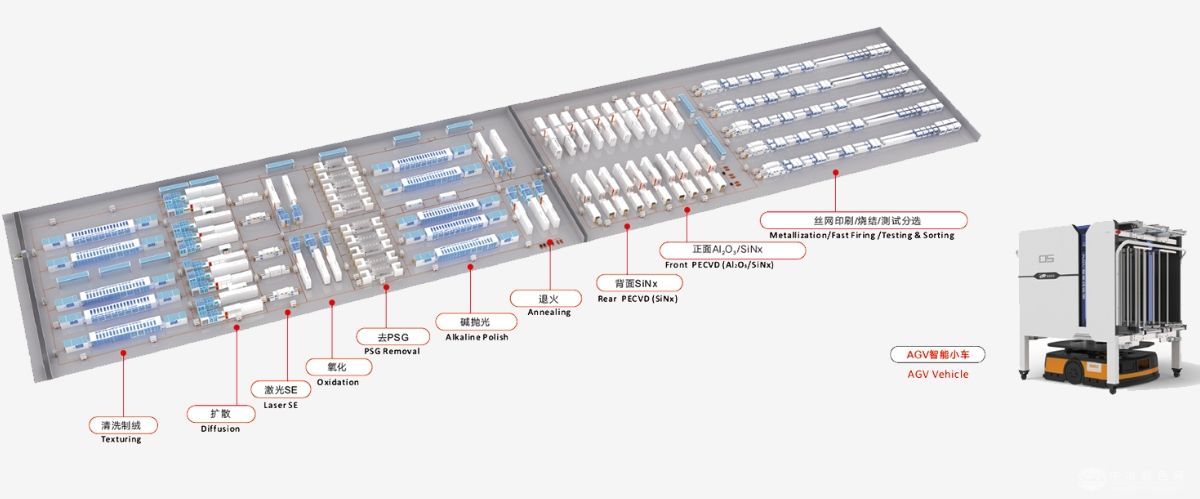

晶硅电池AGV智能生产线 AGV Smart Factory
设备用途 Equipment Application
取代人工搬运片篮、信息智能交互、资源智能管控，实现整线自动化生产，工厂智能化管理。
技术特点 Features
1、原料仓到成品仓均采用潜伏式AGV和货架的方式，实现各工序之间的产品搬运工作。
Using‘latent-type AGV + shelf ’delivery system from raw material warehouse to finished products warehouse to realize cassettes are transported between each process steps.
2、采用S.C定制的MCS任务调度系统，根据MES系统下发的任务要求，来控制RCS小车调度系统搬运货架，实现无人化、智能化生产。
Adopts S.C customized MCS task scheduling system and according to the task requirements issued by MES system, it controls RCS vehicle scheduling system to move shelves to achieve unmanned smart production.
3、MCS任务调度系统包含部分MES功能，满足客户的基本需求。
MCS task scheduling system includes some MES function which could meet the basic needs of customers.
4、有开放式货架、半封闭式货架、全封闭式货架三种可选，满足不同工艺生产需求。
Open/semi-enclosed /enclosed shelves optional, to meet different process needs.
5、货架与自动化结构上采用机械方式对接，程序上采用网线连接进行信号传输，有效提升片篮传输可靠性。
The cassette shelf mechanically connects with tool automation structure and the program is transferred using network cable,which improves the reliability of the cassettes transportation effectively.
6、采用货架代替缓存站方式，确保先进先出原则的同时，工序间的缓存货架可灵活调用也可减少部分工序的缓存货架大大降低成本。
Using cassette shelves to replace buffer station ensures the first-in-first-out principle and the flexible scheduling of buffer shelves greatly reducing cost.
7、选用国内一线品牌AGV生产厂商，有纹理导航、激光SLAM导航方式小车选择。
Adopts Tier-1 AGV suppliers in China, texture navigation/ laser SLAM navigation optional.
设备参数 Parameters
名称 Name：晶硅电池AGV智能生产线AGV Smart Factory
硅片尺寸(mm)Wafer Size：156/166/18X/210/230可选optional
适用对象Applicable：晶体硅太阳能电池生产线，Crystalline Solar Cell Production Line
AGV引导方式Navigation Method：纹理/激光SLAMTexture navigation/laser SLAM navigation
AGV搬运片篮数量AGVCassette Handling Amount：≥ 10个.≥10 pcs cassette
操作方式Operate Mode：运行过程全自动，Automatic
