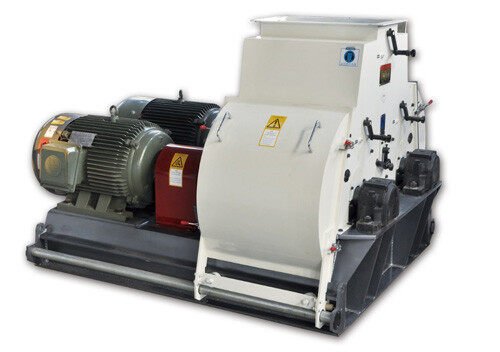

粉碎机

687

规格/型号：暂无

品牌：元大双璇

应用领域：选矿设备

产地：河北 - 石家庄

厂家/供应商：河北元大双璇科技有限公司

咨询电话:：暂无（请说明信息源自“中冶有色技术网”）

更新时间：2023-12-25

级别：待认证

粉碎机说明介绍

适用范围：适用于筛孔直径0.5～1.5mm的微粉碎，具有出筛快、料温低，产能高，粒度分布均匀的特点；适合高水分、高油脂、高纤维物料的粉碎。广泛应用于乳猪料、宠物料、膨化料、发酵料及水产饲料超微前的微粉碎。

Scope of application:It is suitable for micro grinding of 0.5-1.5mm mesh diameter. It has the characteristics of quick sieving, low material temperature, high productivity and even particle size distribution. It is also suitable for grinding of high moisture, high grease and high fiber materials. It is widely used in micro grinding of piglet feed, pet feed, expanded feed, fermented feed and aquatic feed.

,微粉碎系列粉碎机

微粉碎系列粉碎机产品优势：advantage

微粉碎系列粉碎机结构先进：Advanced structure:

?采用“双倍撞击、破坏环流”的技术，有效解决了微粉碎能耗高及高水分、高油脂、高纤维物料粉碎中糊筛的技术瓶颈。

The patented technology of "double impact force and destroying circulation" is adopted to effectively solve the technical bottleneck of high energy consumption and screen blocking in the crushing of high moisture, high grease and high fiber materials.

?采用“限位模块代替锤片隔套”技术，更换锤片时间缩短2/3。

Using the patented technology of "hammer limit module", the replacement time of hammer is shortened by 2 / 3.

?锤筛间隙可调，适合不同性质物料的粉碎。

The gap between hammer and screen is adjustable, which is suitable for crushing different materials.

运转平稳：Stable operation:

?时效处理，消除内应力，延长寿命。

Aging treatment can eliminate internal stress and prolong service life.

?主轴承振动速度≤3.5mm/s；转子动平衡检测精度≤0.5g。

The vibration speed of main bearing is ≤ 3.5mm/s; the detection accuracy of rotor dynamic balance is ≤ 0.5g.

?粉碎机正常工作时，可保证放置一枚一元硬币直立不到。

When the crusher is in normal operation, it can ensure that a one yuan coin can not be placed upright

微粉碎系列粉碎机全自动运行：automatic

?可自动调节喂料量，保证粉碎机工作状态运转。

It can automatically adjust the feeding quantity to ensure the best working condition of the crusher.

?可选配轴温检测、故障报警、急停开关等系统。

Optional with axle temperature detection, fault alarm, emergency stop switch and other systems.

?可配置自动导向及电流平衡自动调节系统。

it can be equipped with automatic guidance and current balance automatic regulation system.

微粉碎粉碎机主要技术参数Main technical parameters

系列series	型号 Model	功率（kw） power	产能 capacity
56	SFSP-S56×20	7.5×2	可按照kwh产量概算产能: 以国标玉米为例，筛孔孔径对应的kwh产能： The production capacity can be estimated according to the production capacity of kWh: Take the national standard corn as an example, the kWh capacity corresponding to the mesh diameter: 孔径（mm）产能（kg/kwh）1.595～1101.283～921.065～710.859～660.528～35筛孔直径对应的产能（kg/kwh）乘以粉碎机的功率即为粉碎机小时产能。 he capacity corresponding to the screen diameter (kg/kWh) multiplied by the power of the machine is the hourly capacity of the machine.
	SFSP-S56×25	11×2
	SFSP-S56×30	15×2
	SFSP-S56×30	18.5×2
	SFSP-S56×40	22×2
66	SFSP-S66×30	30×2
	SFSP-S66×40	37×2
	SFSP-S66×50	45×2
	SFSP-S66×60	55×2
	SFSP-S66×80	75×2
	SFSP-S66×100	90×2
	SFSP-S66×125	110×2
