产品特点(Product characteristics)：
自动化焊接，焊点均匀，一致性良好，提高合格率实时焊接电流监控，虚焊或炸火报警自动停机
▶可选择点焊规范焊接(正负极可设置不同电流)
▶点焊坐标参数可采用U盘导入参数
▶运行机构采用伺服电机配合线型模组，精准定位
▶可设置点焊规范焊接(正负极分别使用不同电流焊接)
▶可设置同一电芯正极点焊，负极不点焊
▶Automatic welding, uniform solder joints, good consistency, improve the pass rate
▶Real-time monitoring of welding current, automatic stop of false welding or explosive fire alarm
▶Optional spot welding specification welding (positive and negative pole can set different current)
▶The coordinate parameters of spot welding can be imported by U Disk
▶The running mechanism adopts Servo Motor and linear module, and the positioning is precise
▶Spot welding specification can be set (positive and negative electrodes are welded with different current)
▶The same core can be set for positive pole spot welding, negative pole non-spot welding

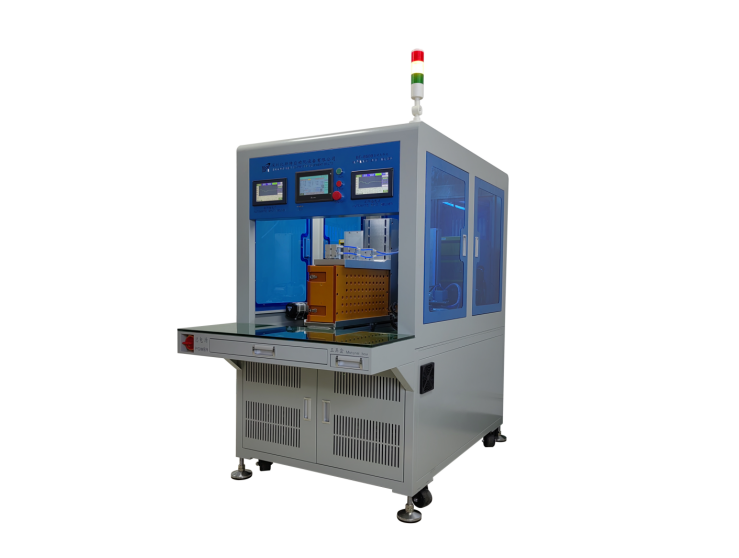

1、主要功能：圆柱电芯的组合式双面自动化焊接
Main function:Auto double-sided welding of cylindrical battery
2、设备功率(Power) :3KW ,220V,50HZ
3、使用气压：0.4-0.8Mpa，使用气源时必须有过滤装置，确保气流无水无杂质。
Air pressure：0.4-0.8Mpa, Air source must be used when there is a filter device to ensure that the flow of water-free impurities.
4、适应范围:动力电池的串并组合,多并多串组合电动工具电池，扭扭车电池(1个模具点焊6组)，储能电池包，电动单车电池等
Adaptive range: Power Battery series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, Electric Bicycle Battery, etc.
适合电芯(battery range)：14430/14500/18500/18650/21700/26650/26700/32050/32700
5、最大行程：X axis:200-600mm ; Y axis:200-400mm
6、适合点焊针：进口直径4-4*6平头焊针(凸点焊接使用)
进口直径1.7*100MM(焊点点焊)
Suitable for spot welding:
Imported 4-4 * 6 flat head Pin (for projection welding)
Inlet diameter 1.7 * 100MM (spot welding)
7、适合镍片宽度：成型镍片
Suitable for nickel sheet width : Shaped nickel sheet
8、可定制点焊模具前进后出型(适合自动生产线使用)
Can Be customized spot welding die forward and backward type (suitable for automatic production line)
9、可定制自动打磨焊针功能
The function of auto-grinding and welding needle can be customized
10、适合镍片厚度(Nickel sheet thickness)：
0.1MM---0.2MM(0.15—0.2MM厚度镍片需开槽)
(0.15-0.2MM thickness nickel sheet needs to be slotted)
凸点焊镍片(Bump welding nickel sheet):0.21—0.4MM
11、生产效率(Efficiency):About3600PCS-4500PCSCells/H
12、标配点焊机：
MDA-8000B晶体管点焊电源,数量两台
Standard spot welding machine:
MDA-8000B Transistor spot welding power supply, 2 sets，Adaptive range: Power Battery series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, Electric Bicycle Battery, etc.
适合电芯(battery range)：14430/14500/18500/18650/21700/26650/26700/32050/32700
5、最大行程：X axis:200-600mm ; Y axis:200-400mm
6、适合点焊针：进口直径4-4*6平头焊针(凸点焊接使用)
进口直径1.7*100MM(焊点点焊)
Suitable for spot welding:
Imported 4-4 * 6 flat head Pin (for projection welding)
Inlet diameter 1.7 * 100MM (spot welding)
7、适合镍片宽度：成型镍片
Suitable for nickel sheet width : Shaped nickel sheet
8、可定制点焊模具前进后出型(适合自动生产线使用)
Can Be customized spot welding die forward and backward type (suitable for automatic production line)
9、可定制自动打磨焊针功能
The function of auto-grinding and welding needle can be customized
10、适合镍片厚度(Nickel sheet thickness)：
0.1MM---0.2MM(0.15—0.2MM厚度镍片需开槽)
(0.15-0.2MM thickness nickel sheet needs to be slotted)
凸点焊镍片(Bump welding nickel sheet):0.21—0.4MM
11、生产效率(Efficiency):About3600PCS-4500PCSCells/H
12、标配点焊机：
MDA-8000B晶体管点焊电源,数量两台
Standard spot welding machine:
MDA-8000B Transistor spot welding power supply, 2 sets
13、 三种点焊数据输入Three kinds of data input for spot welding：
点阵输入法 Lattice input method
阵列输入法 Array input method
U盘导入法，把点焊数据储存到U盘，直接导入到机器，(U盘CAD数据按单次导入到触摸屏，然后可批量从触摸屏导出到U盘，再一次性到入到其他机器使用)
U Disk import method, the spot welding data stored to the U Disk, direct import to the machine, (U disk CAD data by a single import to the touch screen, and then can be bulk from the touch screen export to the U Disk, once again into other machines to use)
14、点焊模具型号命名：中英文输入
Type designation of spot welding die：Chinese and English input
15、控制器件:7.5寸触摸屏，6轴高速PLC编程器，3轴750W伺服电机,2轴400W伺服电机驱动电动焊头
Control device：7.5-inch touch screen, 6-axis high-speed PLC
programmer, 3-axis 750W servo motor, 2-axis 400W servo motor drive electric welding head
16、镍带采用成型镍带，减少浪费
The nickel strip adopts the shaped nickel strip to reduce the waste
17、设备调试简单，易学易懂，换型号速度快(0-199组数据可调用)
Equipment debugging is simple, easy to learn and understand, change models quickly (0-199 groups of data can be called)
18、焊头动力：伺服电动
Welding power：Servo motor
19、成品电池治具：出厂附带1套绝缘电木治具(2个)
Finished Battery fixture：Factory with 1 set of insulated bakelite fixture (2)
20、本公司产品保修期为贰年
The warranty period of our products is two years
21、设备外形尺寸(Size)：L1630*W850*H1630MM
22、设备重量(Weight) ：220KG
23、 设备主要配件清单(List of major accessories)
