南京先丰纳米为您提供高质量的氮化硼分散液，请直接在线订购。Boron Nitride (BN) Pristine Flakes in Solution, 100 ML
BN Pristine Flakes are nanoscale crystals dispersed in ethanol / water solution. Solution of nano-BN has a white translucent color, in contrast to the milky suspension of micro-sized BN flakes.
Properties:
Lateral Size: 50-200 nm
Thickness: 1-5 Monolayers
Purity in Dry Phase: >99%
Solution Concentration: 5.4 mg/L
Solution is stable under ambient conditions
SEM image of a BN flake

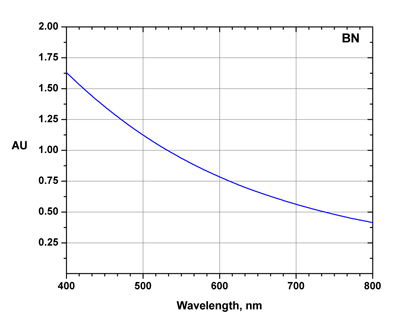

UV-Visible Absorption Spectrum
Boron nitride is a chemical compound with chemical formula BN, consisting of equal numbers of boron and nitrogen atoms. BN is isoelectronic to a similarly structured carbon lattice and thus exists in various crystalline forms. The hexagonal form corresponding to graphite is the most stable and softest among BN polymorphs, and is therefore used as a lubricant and an additive to cosmetic products.

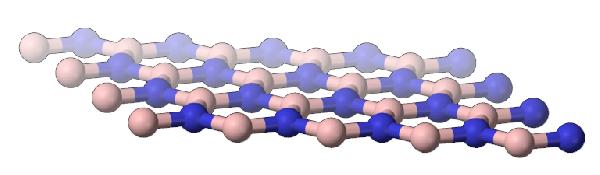

Depiction of BN Molecular Structure
Preparation Method: Solution-based Exfoliation

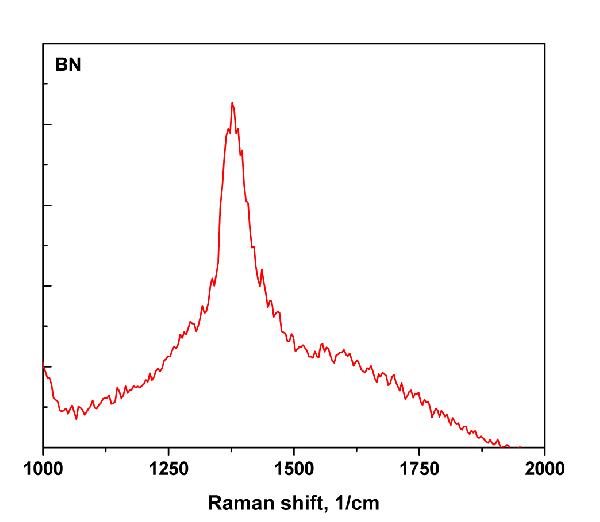

BN Raman Spectrum
Applications
Dielectric Layer in Transistors
Hybrid Materials
BN Research
Inks
Thin Insulating Films
Protective Coatings
Deep Ultraviolet (DUV) Emitters
Check out our WS2, MoS2, BN trial pack if you would like to test all three NEW products by clickingHERE!
Academic References:
Electronics and optoelectronics of two-dimensional transition metal dicalcogenides, Wang et al. Nature Nanotechnology, 7 (2012), pp. 699-712
