概述/General Introduction
FLG型压力过滤器是我公司在吸收国内外科研成果和工程实践自足研发的过滤器。FLG型压力过滤器一种新型、高效、节能、精密的新产品,适用于各种悬浮液的固液分离,适用范围广、分离效果好、结构简单、操作方便、安全可靠;广泛应用于洗煤、石油、化工、染料、冶金、医药、食品等领域,也适用于纺织、印染、制药、造纸、皮革、味精等工业废水及城市生活
污水处理等各种需要进行固液分离的领域。
FLG-type filter is a highly efficient, energy-saving, and high precision equipment, which is developed independently by our company. It is suitable for solid-liquid separation. It has a wide range of applications, good separation effect, simple structure, easy operation, safe and reliable features. It is widely used in chemical industry, medicine, dyes, food and other industries, alternative filters, centrifuges, suction filter, plate and frame filter, also applies to the textile, printing and dyeing, paper, leather, monosodium glutamate and other industrial waste water and urban sewage treatment which needs solid-liquid separation field.
过滤器内部由高精度316L烧结板过滤网,液体由入口流进,经烧结板过滤网过滤后流出,杂质/固体则被拦截在烧结板过滤网袋中。压力过滤器过滤系统主要基于深层过滤,表面过滤,吸附过滤等三种过滤原理,具有准确、高效、稳定的特点。

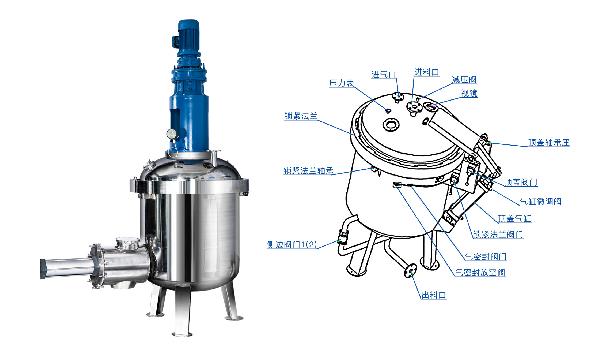

Filter is composed of 304 stainless steel cylinder, S-type mixing automatic discharge device,high-precision,316L sintered plate filter and titanium rods. The liquid flows from the feed port, flows through the sintered plate and a titanium rod after filtering screen ,solid is intercepted in the discharge device, to achieve the filtering effect. The filter is based on the principle of surface filtration, with accurate, efficient and stable features.
优势/Advantage
与普通过滤器比较,FLG系列压滤过滤器具有如下特点:
Compared with the ordinary filter FLG series filter has the following characteristics
| |
低污染、高环保
Low pollution and high environmental protection
系统采用Y型硅橡胶和氟橡胶气密封圈,密封性好、无气味外溢、杜绝泄漏现象,操作空间环境无污染
The system use Y-type silicone rubber and fluorine rubber seals ,has features of good sealing, odorless spill ,the operating environment without pollution.
过滤精度高,使用范围广
High precision filter and wide use range
分一至三级过滤方式,过滤精密度:0.45-200μm,可用在各种固液分离、活性炭分离等介质压滤
Can be used for a variety of solid-liquid separation, activated carbon separation and other media pressure filter
有恒温和烘干功能
Has constant temperature and drying function
| |
操作简单、安全性高
Simple operation ,high security
系统采用气动A、B、C型法兰气动锁紧技术,无需电源、安全可靠
It use pneumatic locking technology ,no power ,safe and reliable
过滤速度快
High filtration speed
过滤面积大,是原常规过滤器的三倍,过滤速度快
Filtration area is three times the conventional filter, so it has higher filtering speed
溶剂回收率高
Solvent recovery highly
利用搅拌自动清洗
Automatic cleaning with stirring
|
主要技术参数/Main Technical Parameters
