RFLM系列立磨
RFLM SERIES ULTRAFINE VERTICAL ROLLER MILL
RFLM系列微细粉体立式磨粉机，是瑞丰粉体设备有限公司依靠多年的经验，以及通过深入学习德国、日本等国外粉体加工技术，充分了解用户的需求，了解行业的痛点。用专业的设计理念，通过和国内外零部件供应商深入合作研发，推出多款粉体研磨设备，广泛的应用于方解石、重晶石、滑石等大规模细粉加工领域。
RFLM series vertical mill RFLM SERIES ULTRAFINE VERTICAL ROLLER MILL RFLM series fine powder vertical mill, is Ruifeng powder equipment co., Ltd. Relying on many years of experience, and through in-depth study of Germany, Japan and other foreign powder processing technology, fully understand the needs of users, Understand the pain points of the industry. With the professional design concept, through the deep cooperation research and development with domestic and foreign parts suppliers, introduced a number of powder grinding equipment, widely used in calcite, barite, talc and other large-scale fine powder processing fields.
工作原理

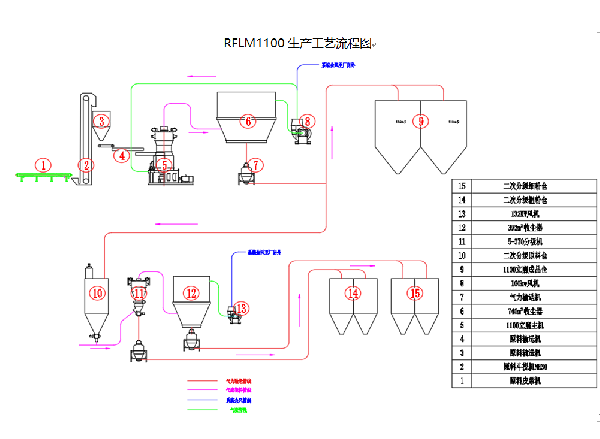

主电机通过减速机带动磨盘转动，物料经螺旋输送机进入立磨主机内，受重力作用落到磨盘中央，同时风机产生的气流从进风口进入主机。在离心力的作用下，物料从磨盘中央向边缘均匀移动，经过磨盘上的辊道时，受磨辊碾压，大块物料直接被压碎，细物料受挤压后形成料层，进行粒间粉碎。粉碎后的物料继续向磨盘边缘移动，直到被磨盘外围的风口环引导的强气流向上带走，较粗的物料由于自身重力原因重新落回至磨盘内，进行再次碾磨；较细物料则随气流上升进入主机上方的分级系统进行筛选分级，在分级转子叶片的作用下，较粗的物料不能被通过，而被叶片重新打落活磨盘内再次碾磨，合格的细粉将随气流带出分级系统，通过外部管路进入除尘系统，然后经
除尘器将气流与物料分离、收集后，即为成品。另外，物料中的杂物及大颗粒物料会在研磨时，被刮料板刮入排渣口，排出磨体，从而有效的保证了成品的质量。此外还可通过调节液压系统的压力，来调节磨辊的压力，在一定范围内可适应不同硬度的物料需求；通过调节多转子分级系统的转子转速，来调节分级筛选细度，从而获得多种不同规格的合格成品。

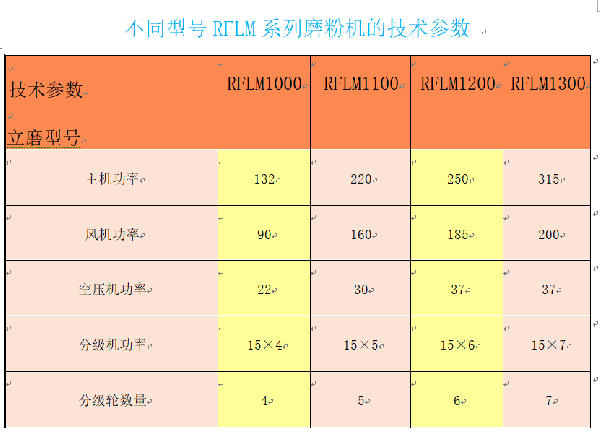

我们的性能优势

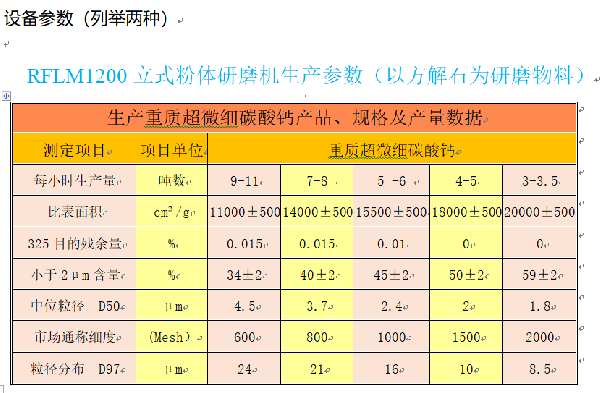

1. 产品多样性强，RFLM系列研磨主机配备新型多转子分级机，可生产成品粒径范围大，2μm区间30%~60%，D97=7~45μm，比表面积20000cm2/g，而D97=7.0μm的产品则可直接由主机生产。
2. 采用合理的设计及匹配，机械系统拥有较高的传动效率，并且采用美国霍尼韦尔或者德国西门子高能效电机，以及采用高效率的定制风机，风机的特性曲线根据立磨的实际工况进行设计，所以RFLM系列立磨能耗更低，长期运行会降低企业的用电成本。
3. 经本公司优化改进后的磨轮、磨盘、导流系统及内部循环系统，拥有较高的研磨效率，相比过去的立磨产品，产量高出10~20%。
4. 经本公司改进后的磨机，可在低振动下运转，振动和噪音更低。
5. 具有高可靠性，分级机无需经常注油保养，故障率低，磨辊系统长寿命设计，轴承及油封使用寿命20000小时以上，减速机采用行星结构的立磨专用减速机，一级减速采用德国克林贝格螺旋伞齿轮，扭矩及性能高于常用的美国格里森螺旋伞齿轮，齿轮材料采用DIN标准的钢材，保证较长的使用寿命。小型减速机采用德国SEW或者日本住友品牌，重载的磨辊部位采用美国TIMKEN轴承，高转速的分级机部分采用瑞典SKF,德国的FAG轴承，来确保该部位的长期稳定运行。电机的驱动部分采用日本安川电机株式会社的变频器产品。
6. 耐磨性能，瑞丰立磨分级轮采用高耐磨材料及热处理技术，具有较长的使用寿命，磨轮、磨盘耐磨件采用高耐磨合金制造，能够在磨损严重的重晶石和滑石行业长期保持较长的使用寿命， 为用户节省耐磨件更换成本，并且减少了停机维修时间。
7. 智能化，采用PLC控制，触摸屏操作，系统能够实现立磨生产线的自动化运行，实时显示并且保存运行数据，如转速，温度、压力、压差、并且能够根据系统采集到的各个点压力参数，压差参数、电流参数等实现自动的给料运行，自动化的操作使原本复杂的立磨操作变得简单。并且可以连接互联网，实现远程操控，远程故障分析处理，数据分析。
Working principle the main motor drives the grinding disc to rotate through a speed reducer, the material enters the vertical grinding host through a screw conveyor, and the material falls to the center of the grinding disc under the action of gravity, and the air flow generated by the fan enters the main machine from the air inlet. under the action of centrifugal force, the material is uniformly moved from the center of the grinding disc to the edge, and when the material passes through the roller way on the grinding disc, the material is crushed by the grinding roller, the bulk material is directly crushed, and the fine material is extruded to form a material layer, and the granules are crushed. the crushed material is continuously moved to the edge of the grinding disc until the strong air flow guided by the tuyere ring on the periphery of the grinding disc is taken away, and the thicker material is returned to the grinding disc again due to the gravity of the grinding disc to be ground again; the fine material is screened and classified along with the air flow rising into the grading system above the main machine; under the action of the graded rotor blade, the coarse material cannot be passed, and the blades are re-milled in the movable grinding disc again, and the qualified fine powder will be taken out of the grading system along with the air flow, entering the dust removal system through an external pipeline, and then separating the air flow and the material through a dust remover, and collecting to obtain a finished product. in addition, the impurities in the material and the large-particle material can be scraped into the slag discharge port by the scraping plate when the material is ground, and the grinding body is discharged, so that the quality of the finished product is effectively ensured. in addition, the pressure of the grinding roller can be adjusted by adjusting the pressure of the hydraulic system, so that the material requirement of different hardness can be met in a certain range, and the fineness of the grading filter is adjusted by adjusting the rotor speed of the multi-rotor grading system so as to obtain a qualified finished product with a plurality of different specifications. Our performance advantages 1. The product diversity is strong, the RFLM series grinding host is equipped with a new type of multi-rotor classifier, the particle size range of the finished product can be large, the interval between 2 & mu; m is 30-60%, the D97 is 7-45 & mu; m, the specific surface area is 20000cm/ g, and the product of D97 = 7.0. mu.m can be directly produced by the host. 2. With reasonable design and matching, the mechanical system has higher transmission efficiency, and adopts Honeywell or Siemens high energy efficiency motor as well as high-efficiency customized fan. The characteristic curve of the fan is designed according to the actual working condition of the vertical mill. Therefore, the energy consumption of the RFLM series vertical mill is lower, and the long-term operation can lower the power consumption cost of the enterprise. 3. The grinding wheel, the grinding disc, the flow guiding system and the internal circulating system after the improvement of the Company have higher grinding efficiency, and the yield is 10-20% higher than that of the past vertical grinding products. 4. The mill after the Companyundefineds improvement can be operated at low vibration with lower vibration and noise. 5. The speed reducer has the advantages of high reliability, no need of frequent oiling and maintenance, low failure rate, long service life of the grinding roller system, long service life of the bearing and the oil seal, The torque and performance are higher than the commonly used Grisson spiral bevel gear, and the gear material adopts the steel of DIN standard to ensure the long service life. The small-sized speed reducer adopts German SEW or Japanese Sumitomo brand, and the heavy-load grinding roller part adopts the American TIMKEN bearing, and the high-speed classifier part adopts the FAG bearing of Sweden SKF and Germany to ensure the long-term stable operation of the part. The drive part of the motor is the frequency converter product of the Japan undefinedan Sichuan Electric Machinery Co., Ltd. 6. The wear-resisting property and the riffon grinding and grading wheel adopt the high wear-resistant material and the heat treatment technology, have a long service life, the cost of the wear-resistant piece replacement is saved for the user, and the downtime maintenance time is reduced. 7. Intelligent, with PLC control and touch screen operation, the system can realize the automatic operation of the vertical grinding production line, display and save the running data in real time, such as speed, temperature, pressure and pressure difference, and can adjust the pressure parameters and pressure difference parameters according to the pressure parameters and pressure of each point collected by the system, The current parameters and the like realize the automatic feeding operation, and the automatic operation makes the src complicated vertical grinding operation simple. and can be connected with the internet to realize remote control, remote fault analysis and processing and data analysis.
