参数 项目 型号 |
筒径 Dmm | 适应 带宽Bmm |
筒长 mm | 感应强度 ≈Gs | 转速 r/min |
粉状铁粉 | 块状 杂质 ≈T/h |

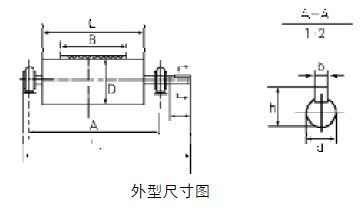

重量 kg | 外型尺寸mm | |||||
A | L1 | K | dφ | h | b | |||||||||
RCQ-32/40 | 320 | 400 | 500 | 3000 | 20- 30 |
≈T/h 0.8 | 10 | 120 | 728 | 1010 | 100 | 50 | 53.5 | 14 |
RCQ-32/50 | 320 | 500 | 600 | 3000 | 1 | 15 | 150 | 850 | 1115 | 115 | 50 | 53.5 | 14 | |
RCQ-40/50 | 400 | 500 | 600 | 3000 | 2 | 20 | 240 | 850 | 1115 | 115 | 55 | 60 | 16 | |
RCQ-50/50 | 500 | 500 | 600 | 3000 | 3.5 | 30 | 360 | |||||||
RCQ-32/65 | 320 | 650 | 750 | 3000 | 2 | 20 | 210 | 1000 | 1350 | 135 | ||||
RCQ-40/65 | 400 | 650 | 750 | 3000 | 2.8 | 30 | 350 | 1000 | 1350 | 135 | ||||
RCQ-50/65 | 500 | 650 | 3000 | 4.5 | 40 | 420 | 60 | 64 | 18 | |||||
RCQ-63/65 | 630 | 650 | 3000 | 7 | 45 | 830 | 90 | 94 | 24 | |||||
RCQ-40/80 | 400 | 800 | 950 | 3000 | 8 | 55 | 470 | 1300 | 1630 | 175 | 70 | 76 | 20 | |
RCQ-50/80 | 500 | 800 | 3000 | 10 | 65 | 600 | ||||||||
RCQ-63/80 | 630 | 800 | 3000 | 10 | 80 | 800 | 1730 | 90 | 97 | 24 | ||||
RCQ-80/80 | 800 | 800 | 4000 | 12 | 100 | 980 | ||||||||
RCQ-63/100 | 630 | 1000 | 1150 | 3500 | 12 | 120 | 1200 | |||||||
RCQ-80/100 | 800 | 1000 | 1150 | 4000 | 15 | 140 | 1300 | 1500 | 2000 | 215 | 110 | 119 | 32 | |
RCQ-100/120 | 1000 | 1200 | 1400 | 4000 | 20 | 180 | 1580 | 1750 | 2270 | 255 | 130 | 140 | 36 | |
RCQ-125/140 | 1250 | 1400 | 1600 | 4000 | 30 | 250 | 1950 | 2000 | 2555 | 275 | 150 | 161 | 40 |
