型号 MODEL |
主机功率 Motor KW |
粉碎口径 Cutting Chamber |
旋转刀片数(把) Cutting Knives |
固定刀片数(把) Stationary knives |
出料网孔 Screen Holes(Φ) |
G50/60 |
22~55 |
500x600mm(20”x24”) |
6/10 |
2/4 |
3~25mm (1/8”~1”) |
G50/80 |
37~75 |
500x800mm(20”x32”) |
6/10 |
2/4 |
|
G50/100 |
45~100 |
500x1000mm(20”x40”) |
6/10 |
2/4 |
|
G50/120 |
45~100 |
500x1200mm(20”x48”) |
6/10 |
4/6 |
型号 MODEL |
粉碎量(公斤/小时) Out put Max Kg/h |
自动出料风机(功率) Blower Power (KW ) |
重量 Wright(Kg) |
给料口尺寸 Hopper Opening |

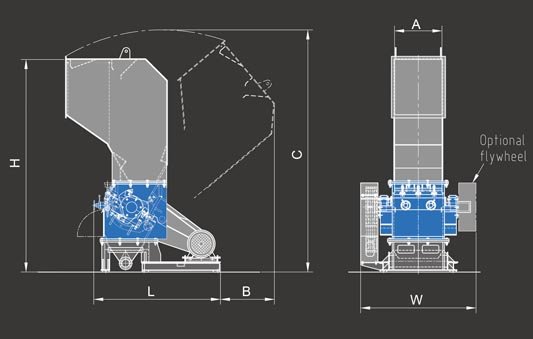

长x宽x高 Length x Width x Height(L x W x H) |
G50/60 |
400~500 |
3-7.5 |
2500 |
600x500mm(24”x20”) |
1625x1445x2070mm(64”x57”x82”) |
G50/80 |
400~600 |
4-7.5 |
3000 |
800x500mm(32”x20”) |
1625x1645x2070mm(64”x65”x82”) |
G50/100 |
500~700 |
5.5-11 |
3500 |
1000x500mm(40”x20”) |
1625x1845x2070mm(64”x73”x82”) |
G50/120 |
500-1000 |
7.5-15 |
4000 |
1200x500mm(48”x20”) |
1625x2045x2070mm(64”x81”x82”) |
