| 机器型号 Model |
功率 Motor(HP) |
料斗开口 Hopper opening |
料斗容积 Hopper Volume |
转轴尺寸 Rotor diameter |
转轴刀片数 Rotor Knives |
网筛孔径 Screen Size |
液压缸功率 Hydraulic(HP) |
机器尺寸 Machine Size(L x W x H) |
机器转速 Rotor speed |
机器重量 Machine weight(lbs) |
| ASG600 |
20/25/ 30HP |
600x1000(mm) 24”x40” |
27ft3 |
Φ400mm Φ16” |
32 |
Φ20-80mm Φ1/2-Φ31/2 |
2HP |
2015x1630x2150(mm) 80”x64”x84” |
70-120rpm |
5200 lbs |
| ASG800 |
30/40/ 50HP |
850x1250(mm) 33”x49” |
54-81 ft3 |
Φ400mm Φ16” |
42 |
Φ20-80mm Φ1/2-Φ31/2 |
2HP |
2310x1860x2365(mm) 90”x73”x93” |
70-120rpm |
6000 lbs |
| ASG1000 |
50/60/ 75HP |
1100x1250(mm) 43”x50” |
81-108 ft3 |
Φ400mm Φ16” |
54 |
Φ20-80mm Φ1/2-Φ31/2 |
2-5HP |
2310x2100x2365(mm) 91”x83”x93” |
70-120rpm |
7000 lbs |
| ASG1200 |
60/70/ 90HP |
1200x1250(mm) 64”x59” |
81-135 ft3 |
Φ400mm Φ16” |
74 |
Φ20-80mm Φ1/2-Φ31/2 |
5HP |
2310x2210x2365(mm) 91”x87”x93” |
70-120rpm |
8000 lbs |
| ASG1500 |
75/90/ 110HP |
1609x1500(mm) 64”x59” |
81-162 ft3 |
Φ500mm Φ20” |
84 |
Φ20-80mm Φ1/2-Φ31/2 |
5HP |
2800x2630x3080(mm) 110”x103”x121” |
70-120rpm |
11000 lbs |
| ASG2000 |
110/130/ 150HP |
2135x1500(mm) 84”x59” |
135 ft3 |
Φ500mm Φ20” |
104 |
Φ20-80mm Φ1/2-Φ31/2 |
5HP |
3730x3160x3600(mm) 147”x125”x142” |
70-120rpm |
12000 lbs |

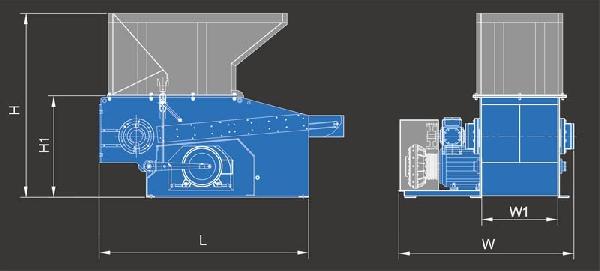

| 机器型号 Model |
L(inch) |
W(inch) |
H(inch) |
H1(inch) |
W1(inch) |
L1(inch) |
| ASG600 |
2015/79.3 |
1630/64.2 |
2150/84.6 |
1255/49.4 |
606/23.9 |
1000/39.4 |
| ASG800 |
2310/90.9 |
1860/73.2 |
2365/93.1 |
1255/49.4 |
840/33.1 |
1250/49.2 |
| ASG1000 |
2310/90.9 |
2100/82.7 |
2365/93.1 |
1255/49.4 |
1075/42.3 |
1250/49.2 |
| ASG1200 |
2310/90.9 |
2210/87.0 |
2365/93.1 |
1255/49.4 |
1192/46.9 |
1250/49.2 |
| ASG1500 |
2800/110.2 |
2630/103.5 |
3080/121.3 |
1500/59.1 |
1609/63.3 |
1500/59.1 |
| ASG2000 |
3730/146.9 |
3160/124.4 |
3600/141.7 |
1500/59.1 |
2135/84.1 |
1500/59.1 |
