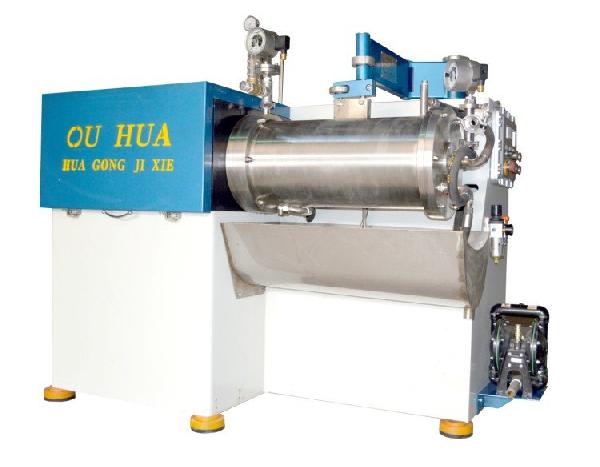

KFM-28LB/C型通用卧式锥型砂磨机
说明
机械密封：双端面机械密封，机械密封内的O形密封圈均采用杜邦公司产品。
1、不同的线速度，由高速转低速研磨。
2、内外桶夹层冷却、转子双层冷却、前端盖冷却、分离室冷却、机封冷却。
3、高质高效，不变色的研磨分散。
4、研磨筒、转子、棒钉均采用进口高耐磨钢，搭配高细密性耐磨合金（优于YG8、YG6合金）。
Attention:
Mechanical Seal, Double Mechanical Seal and O Type Mechanical Seal are all made by Du Pont Company.
1、Different linear velocity grinding from high to low speed
2、Both inside and outside bucket cooling, rotor double-layer cooling, front cover cooling, separate chamber cooling and mechanical seal cooling
3、High quality, high efficiency and unchanged color grinding and dispersing
4、Grinding bucket, rotor, rod pin made of imported alloy steel with high wear-resistance and condense (better than YG8, YG6 Alloy)
应用/Applications
◆平版印刷油墨/Lithographic inks ◆UV印刷油墨/UV printing inks
◆汽车漆/Automotive paint ◆色浆/Color paste
◆网版印刷油墨/Screen Printing Inks ◆图片印刷油墨/Photo printing ink
◆高黏度浆料/High viscosity slurry
特点/Features
◆电机安装在简洁的机器框架上，通过防静电V型散热皮带来保证能量传送、噪音极低
◆采用锥型筒体、螺旋型分散盘，使物料进入研磨腔就能达到**研磨，单次研磨能达到**研磨和分散效果
◆高精密间隙自洁功能，采用Φ0.3-2.0mm的研磨介质
◆双机械密封，可承受更高工作压力
◆研磨腔体、端盖采用机械开启，方便拆洗；研磨腔间隙搅拌器为高耐磨材料，可降低产品交叉污染，易于更换产品
◆定子、隔离环二重高效冷却，前端盖冷却、转子冷却（B型）、机封冷却
◆Motor is mounted on the succinct machine frame to ensure the transmission of energy through anti-static and dissipation
V-belt with low noise
◆Using bi-conical cylinder, spiral scattered disk, the material into the grinding chamber can achieve maximum grinding and
lead a single hit grinding and dispersion
◆High precision gap self-cleaning function, using φ0.3-2.0mm grinding media
◆Double mechanical seal can withstand higher operating pressures
◆Grinding chamber, cover with mechanical open, easy washable; grinding chamber gap blender made of high wear-resistant
materials, can reduce cross-contamination and easy replacement of the product
◆Stator and spacer ring double efficient cooling, the front cover cooling, rotor cooling (B type), and mechanical seal cooling.
标准配置/Standard Configuration
◆转子（B型）、定子、双循环冷却系统/Rotor (B type), a stator, double-loop cooling system
◆精密进口轴承/Imported precision bearings
◆耐压双机械密封、精密间隙分离器/Withstand double mechanical seals, precision gap separator
◆研磨介质、物料收集托盘/Grinding media, material collection tray
◆送料泵浦（应客户需要，进口齿轮泵、气动泵）
Feeding Pump (in response to customer needs, imported gear pump, pneumatic pump)
◆防爆装置、水压控制防呆装置/Explosive devices, water pressure control devices
◆研磨腔：自动防呆压力装置、自动防呆温控装置
Grinding chamber: Automatic fail-safe pressure device, automatic temperature control device foolproof
技术数据/Technical Data
型号/Model KFM-28LB/C
容量/Capacity （L） 28
主机功率/Motor Power（KW） 22
冷却水/Cooling Water（m3/h） 1500-3000
产品流速/Product Flow Rate（L/h） 400-1000
研磨介质/Grinding Media （Φmm） 0.3-2.0
净重/Weight（kg） 1200
